Manufacturer
RF Industries
Product Description

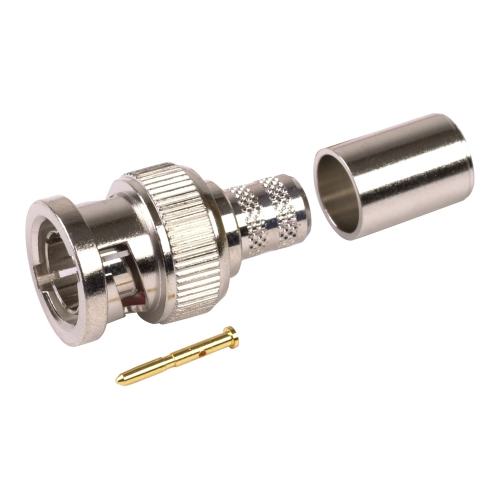

RF INDUSTRIES' RFB-1707-Q1 BNC Male connector for RG6/U Plenum. Nickel-plated body, gold pin. Crimp pin and braid. 75 ohm.
RF Impedance
75 Ohms
Insulator Material
PTFE
Pieces/UG
3
For Cable
RG6 Plenum, Belden 1695A, 82120, 82248, 89120, 89248 CommScope 2278, 2278V, 2279, 2279V
RF Connector Body Style
Straight
Center Pin Type
Crimp
Material (Pin)
Gold
Frequency Range
0-4 GHz
Max Voltage/Pwr
500 Vrms
RF Connector
BNC Male
Strip Jacket to End
0.630
Strip Insulation to End
0.157
Strip Shield to End
0.303
