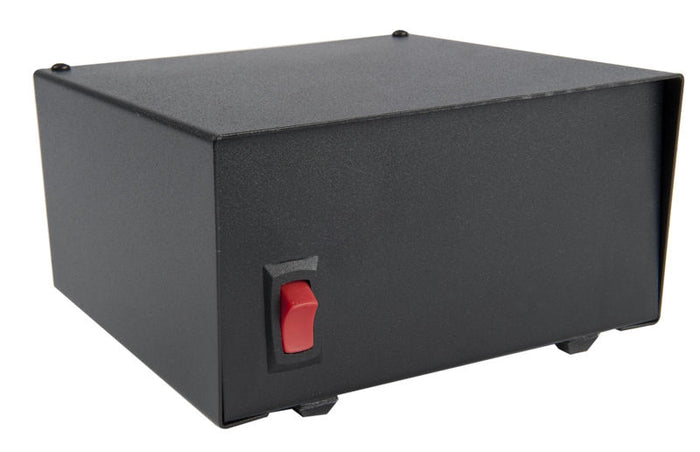

Astron RS-5A
110 Volts AC
$86.60
Sale price
$86.60
Regular price
$113.95
Skip to product information
Astron RS-5A
$86.60
Sale price
$86.60
Regular price
$113.95
Manufacturer
Astron
Model #
RS-5A
Product Description
5 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
13.8 Volts DC
Amperage (Cont.)
4
Amperage (Intermittent)
5
Description
Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Includes battery back up and trickle charger.
Features include:
- Solid state electronically regulated
- Fold-back current limiting protects power supply from excessive current and continuous shorted output
- Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
- Maintain regulation and low ripple at low line input voltage

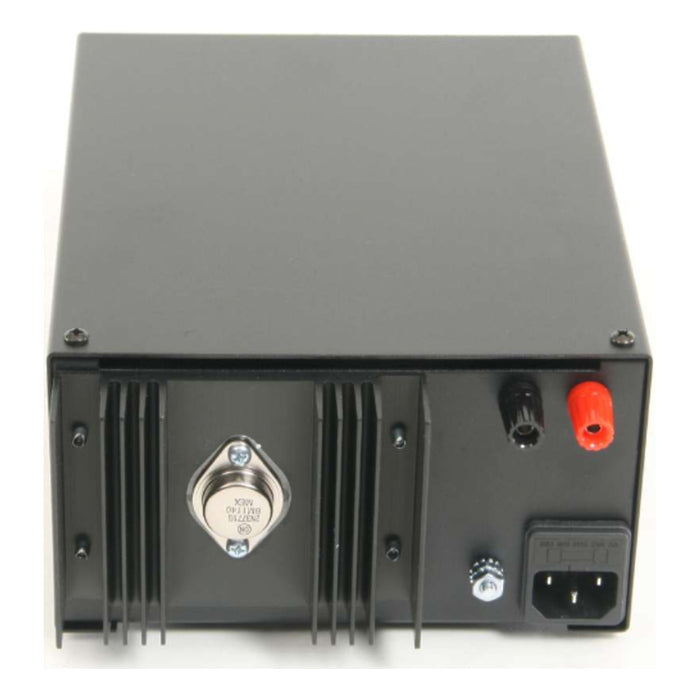

- Heavy duty heat sink
- Three conductor power cord
- All metered units feature backlit meters
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Dimensions
6.125 x 3.5 x 7.25 in
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
