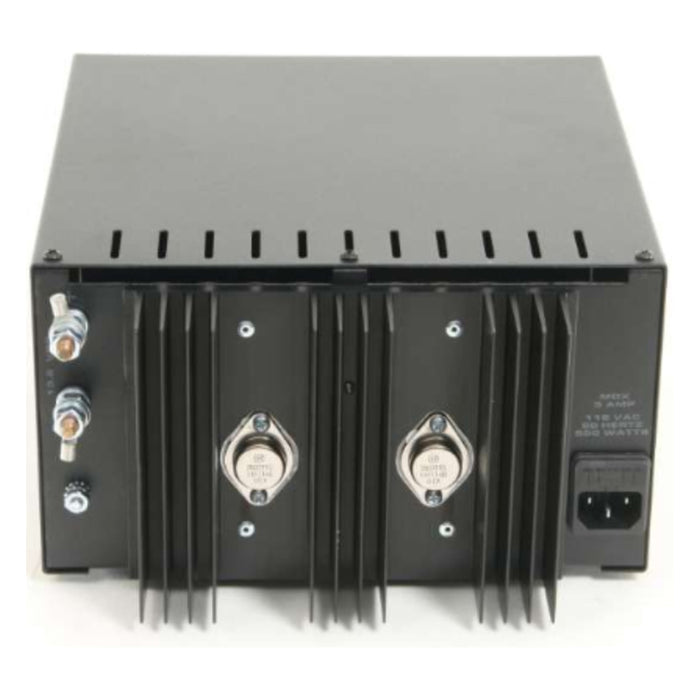

Astron RS-20A
110 Volts AC
$128.67
Sale price
$128.67
Regular price
$194.95
Skip to product information
Dimensions (Width x Height x
Astron RS-20A
$128.67
Sale price
$128.67
Regular price
$194.95
Manufacturer
Astron
Model #
RS-20A
Product Description
20 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
13.8 Volts DC
Amperage (Cont.)
16
Amperage (Intermittent)
20
Description
Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Includes battery back up and trickle charger.
Features include:
- Solid state electronically regulated
- Fold-back current limiting protects power supply from excessive current and continuous shorted output
- Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
- Maintain regulation and low ripple at low line input voltage
- Heavy duty heat sink
- Three conductor power cord
- All metered units feature backlit meters
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Dimensions (Width x Height x
Depth) inches
9 x 5 x 10.5
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
